D-SUB High Current Combo Connector

Reliable Power & Signal Transmission in a Compact D-Sub Form Factor

The D-SUB High Current Combo Connector combines high-current power contacts and standard signal pins in one compact, robust D-Sub housing. Designed for industrial, automation, communication, military electronics, and rugged embedded systems, this connector provides an efficient mixed-density interconnect solution where space, reliability, and performance matter.

---

Key Features

1. Mixed Power + Signal in One Connector

• Integrated layout of high-current pins (10A–40A depending on model) and standard D-Sub signal contacts

• Reduces the number of connectors required on the device panel

• Ideal for compact industrial equipment and control modules

2. High-Current Power Contacts

• Large-diameter machined power contacts

• Low contact resistance and optimized thermal performance

• Suitable for power distribution, motor drives, actuators, and embedded PSU interfaces

3. Industry-Standard D-Sub Construction

• Available in Type A / B / C / D / E shell sizes

• Standard footprints for easy PCB, panel, or cable integration

• Fully compatible with common D-Sub accessories and hardware

4. Multiple Insulator (Epoxy) Options

• White epoxy – Standard version, good insulation, cost-effective

• Black epoxy – Enhanced heat and chemical resistance

• Blue epoxy – High-visibility for quality inspection and differentiation
  (These do not affect electrical performance; mainly mechanical and environmental differences.)

5. Durable Housing & Shielding

• Metal shell for EMI/RFI shielding

• Optional waterproof or vibration-resistant versions

• Suitable for harsh industrial environments

6. Flexible Mounting Options

• Right-angle or straight PCB mount

• Panel mount with threaded inserts

• Cable assembly options available (upon request)

---

Electrical & Mechanical Performance

• Rated Current: 10A / 20A / 30A / 40A (depending on pin size)

• Signal Pins: Standard 3A–5A D-Sub contacts

• Insulation Resistance: ≥ 5000 MΩ

• Contact Resistance: Low-resistance machined contacts

• Operating Temperature: −55°C to +105°C (model-dependent)

• EMI/RFI Shielding: Standard metal shell with ground options

(Full datasheet and PCB footprints available upon request.)

---

Typical Applications

• Industrial automation & control systems

• Servo motors and drives

• Telecom & networking equipment

• Medical electronics

• Test & measurement devices

• Military/aviation electronics (non-ITAR, commercial grade)

• Embedded power modules and compact power boards

---

Why Choose Our D-Sub High Current Combo Series?

• Professional-grade manufacturing with consistent performance

• Wide range of layouts: 2–8 power pins + mixed signal positions

• Custom pin assignments and cable assemblies available

• Supports OEM/ODM and high-volume production

• Rapid sampling + fast lead times for global customers

---

Available Models

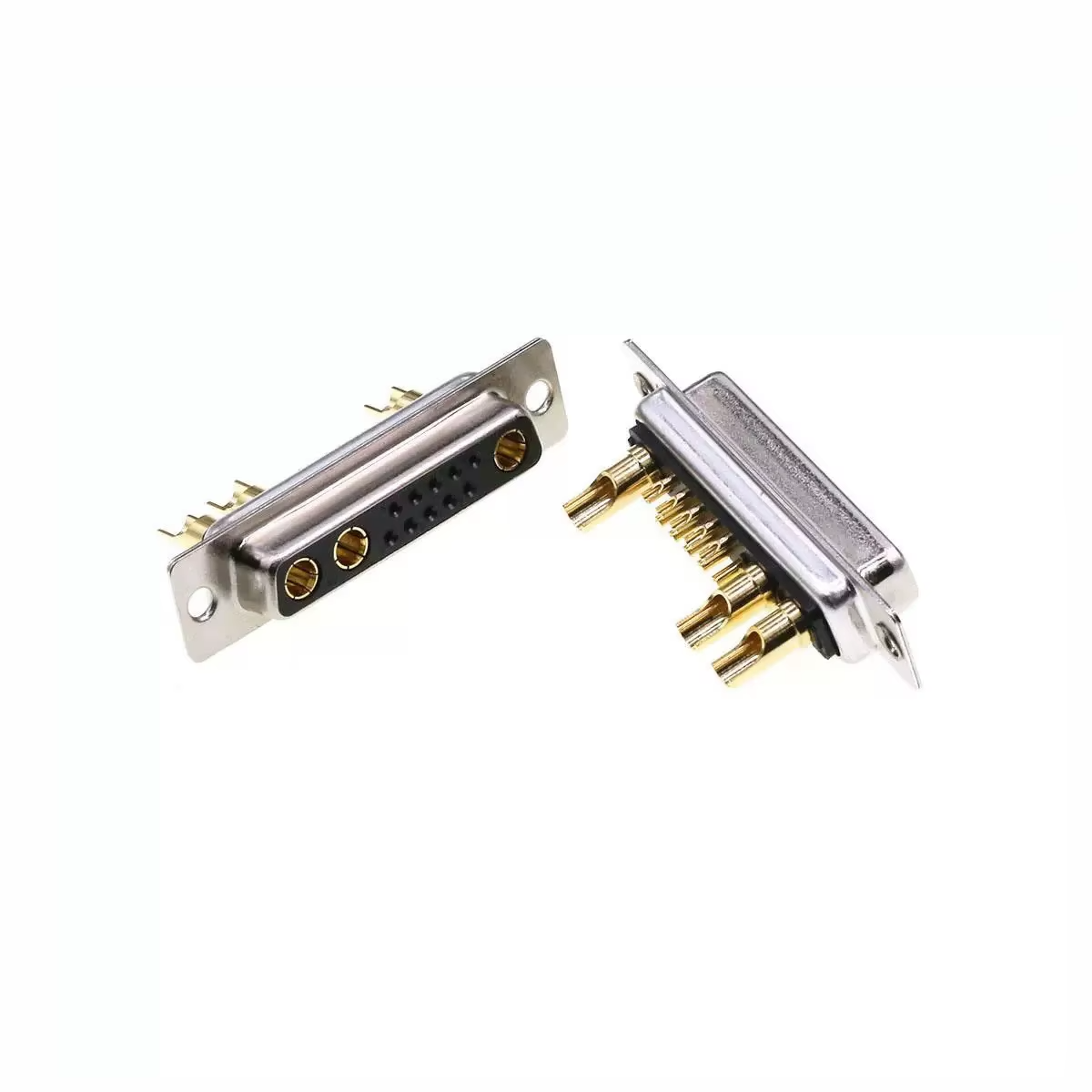

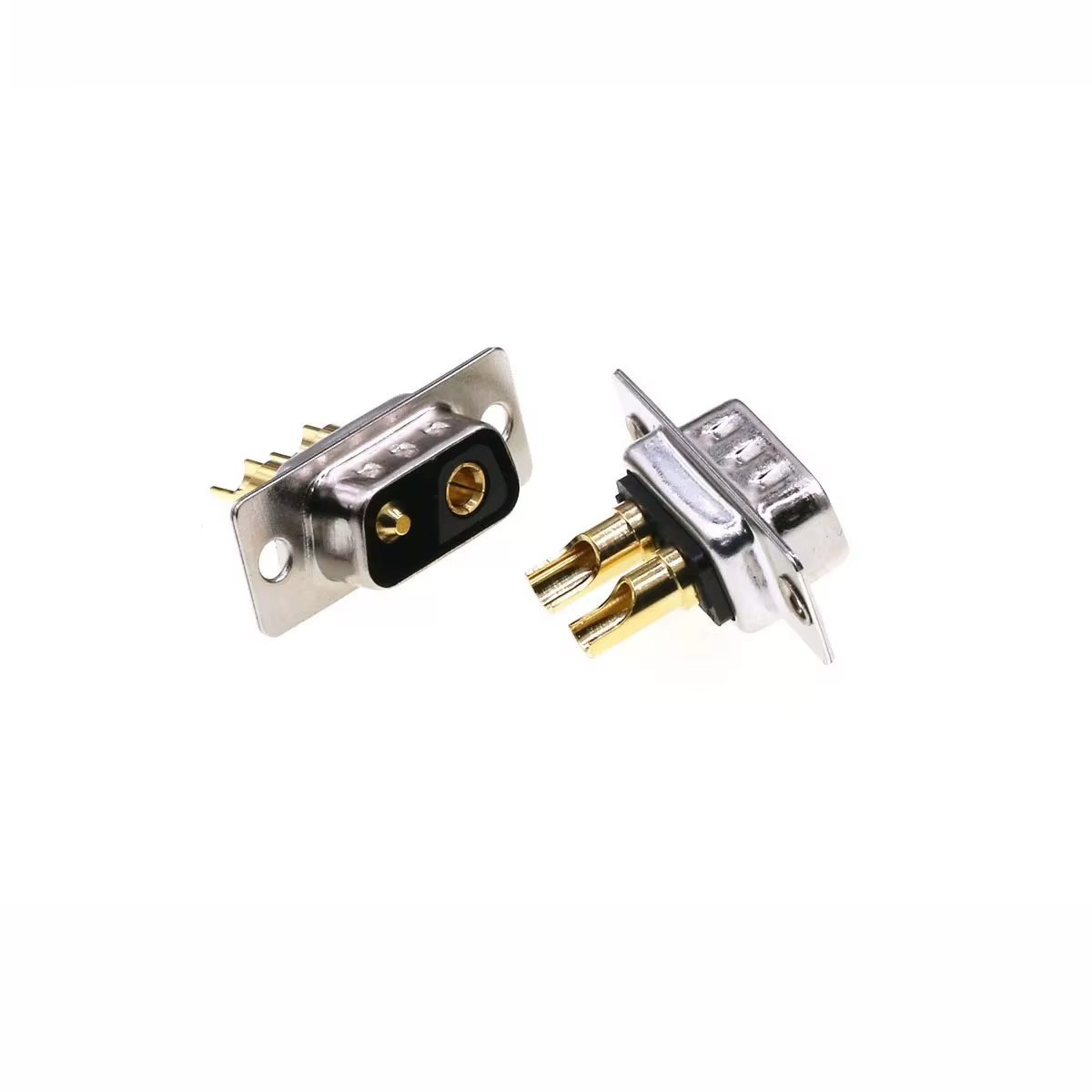

• 5W1 / 5W5 / 8W8 / 9W4 / 13W3 / 17W2 / 21W1 / 21WA4 and more

• High-current pin options: ø2.4mm / ø3.6mm / ø5.0mm

• Shell sizes: DA (15P), DB (25P), DC (37P), DD (50P)

(Custom models or special plating such as gold, selective gold, and nickel are supported.)

---

Request a Quote / Get Samples

Looking for a high-current D-Sub solution?
We provide samples, datasheets, 3D files, and custom layouts.

Contact us with your:

• Required current rating

• Power + signal pin combination

• Mounting type (PCB / panel / cable)

• Quantity & project timeline

Our engineering team will recommend the best configuration for your application.
